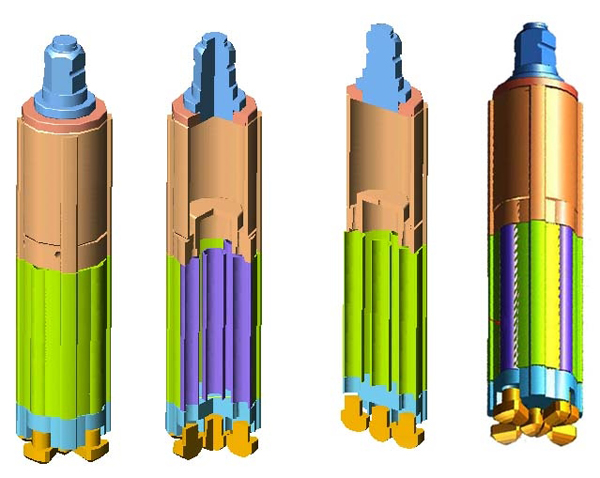

Cluster Hammers and Bits

These products are to mainly solve noise and vibration problems in drilling works near buildings. If you are faced with problems of noise, vibration & environment in rock drilling work, please contact us.

We will give solution. Regarding performance (drilling speed),

the drilling speed is generally 60-70 percent of Mono hammer in the same rock condition. The cluster hammers and bits are designed and made according to the job site conditions.

The delivery is around 30 days.

Model	O/D	Size of DTH Hammers & QTY	Weight (Kg)	Type of HEX Joint	Air Consumption ( CFM)
CD 380	381mm	4" X 4 PCS	1580kg	T4 HEX	1500-2000
CD 450	450mm	4" X 5 PCS	1850kg	T4 HEX	2300-2800
CD 610	610mm	6" X 6 PCS	3200kg	T4 HEX	3000-4300
CD 770	770mm	8" X 6 PCS	4500kg	240H	3500-4300
CD 970	970mm	10" X 7 PCS	6200kg	240H	4200-5800
CD 1200	1200mm	10" X 7 PCS	9300kg	240H	4200-5800
CD 1500	1500mm	10" X 7 PCS	12000kg	240H	4500-6000
CD 2000	2000mm	10" X 8 PCS	15000kg	240H	6500-7200
Specifications are subject to change without notice
